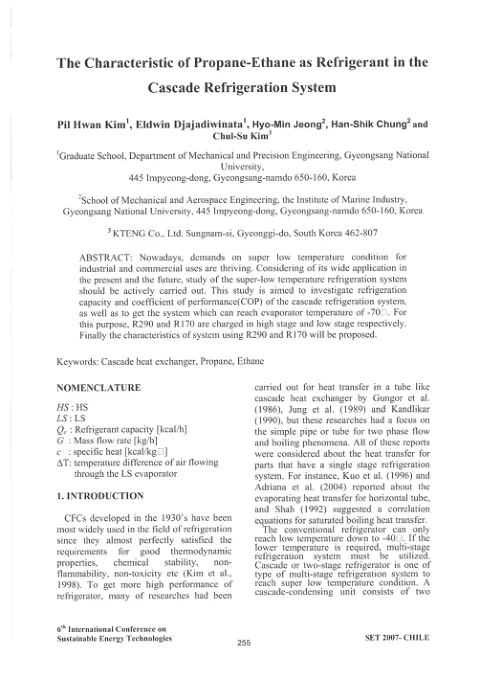

The Characteristic of Propane-Ethane as Refrigerant in the Cascade Refrigeration System
, , , ,
1Graduate School, Department of Mechanical and Precision Engineering, Gyeongsang National University, 445 Impyeong-dong, Gyeongsang-namdo 650-160, Korea
2School of Mechanical and Aerospace Engineering, the Institute of Marine Industry, Gyeongsang National University, 445 Impyeong-dong, Gyeongsang-namdo 650-160, Korea
3KTENG Co., Ltd. Sungnam-si, Gyeonggi-do, South Korea 462-807
Nowadays, demands on super low temperature condition for industrial and commercial uses are thriving. Considering of its wide application in the present and the future, study of the super-low temperature refrigeration system should be actively carried out. This study is aimed to investigate refrigeration capacity and coefficient of performance(COP) of the cascade refrigeration system, as well as to get the system which can reach evaporator temperature of -70°C. For this purpose, R290 and R170 are charged in high stage and low stage respectively. Finally the characteristics of system using R290 and R170 will be proposed.
Keywords. Cascade heat exchanger; Propane; Ethane
References
Gungor, K.E. and Winterton, H.S., 1986, "A general correlation for flow boiling in tubes and annuli", Int. J. Heat and Mass Transfer, Vol. 29, No. 3, pp. 351 – 358.
Jung, D.S, McLinden, M., Randermacher, R and Didion, D., 1989, "A study of flow boiling heat transfer with refrigerant mixtures", Int. J. Heat and Mass Transfer, Vol. 32, No. 9, pp. 1751 – 1764.
Kandlikar, S.G., 1990, "A general correlation for saturated two-phase flow boiling horizontal and vertical tubes", Trans. ASME, Vol. 112, pp. 219 – 228.
Cheng-Shu Kuo and Chi-chuan Wang, 1996, “Horizontal flow boiling of R22 and R407c in a 9.52 mm micro-fin tube”, Applied Thermal Engineering Vol. 16, Nos 819, pp. 7 19-73 1 .
Adriana Greco, Giuseppe Peter Vanoli, 2004, “Evaporation of refrigerants in a smooth horizontal tube: prediction of R22 and R507 heat transfer coefficients and pressure drop”, Applied Thermal Engineering, Vol. 24, pp.2189–2206.
Shah, M. M., 1982, "Chart correlation for saturated boiling heat transfer equations and further study", ASHRAE Tran., Vol.88, pp. 185–196.
Giovanni Di Nicola, Giuliano Giuliani, Fabio Polonara and Roman Stryjek, 2005, “Blends of carbon dioxide and hfcs as working fluids for the Low-temperature circuit in cascade refrigerating systems”, International Journal of Refrigeration. Vol. 28, pp.130–140.
B. Agnew and S.M. Ameli, 2004, “A finite time analysis of a cascade refrigeration system using alternative refrigerants”, Applied Thermal Engineering. Vol. 24, pp.2557–2565.
A. Kilicarslan, 2004, “An experimental investigation of a different type vapor compression cascade refrigeration system”, Applied Thermal Engineering. Vol. 24 , pp. 2611–2626.
How to cite this article
Kim, P.H., Djajadiwinata, E., Jeong, H., Chung, H. and Kim, C. (2007). 'The Characteristic of Propane-Ethane as Refrigerant in the Cascade Refrigeration System'. SET Proceedings, 6(1), pp. 255-261. https://doi.org/10.65582/set.2007.042
